Quality inspection checklists · Mechanical, Plumbing & HVAC · Mechanical services quality checklists
KD-QA-ME-007
Underfloor Heating — Loops and Pressure Test — Quality Inspection Checklist
Pipe loops on insulation before the screed · spacing measured, no joints under the floor, pressurised to the test pressure and kept pressurised through the pour.
4 pages · 194 fillable fields · works in Adobe Reader, Preview, Chrome, or on a phone — or complete it online in your browser and download the finished document.

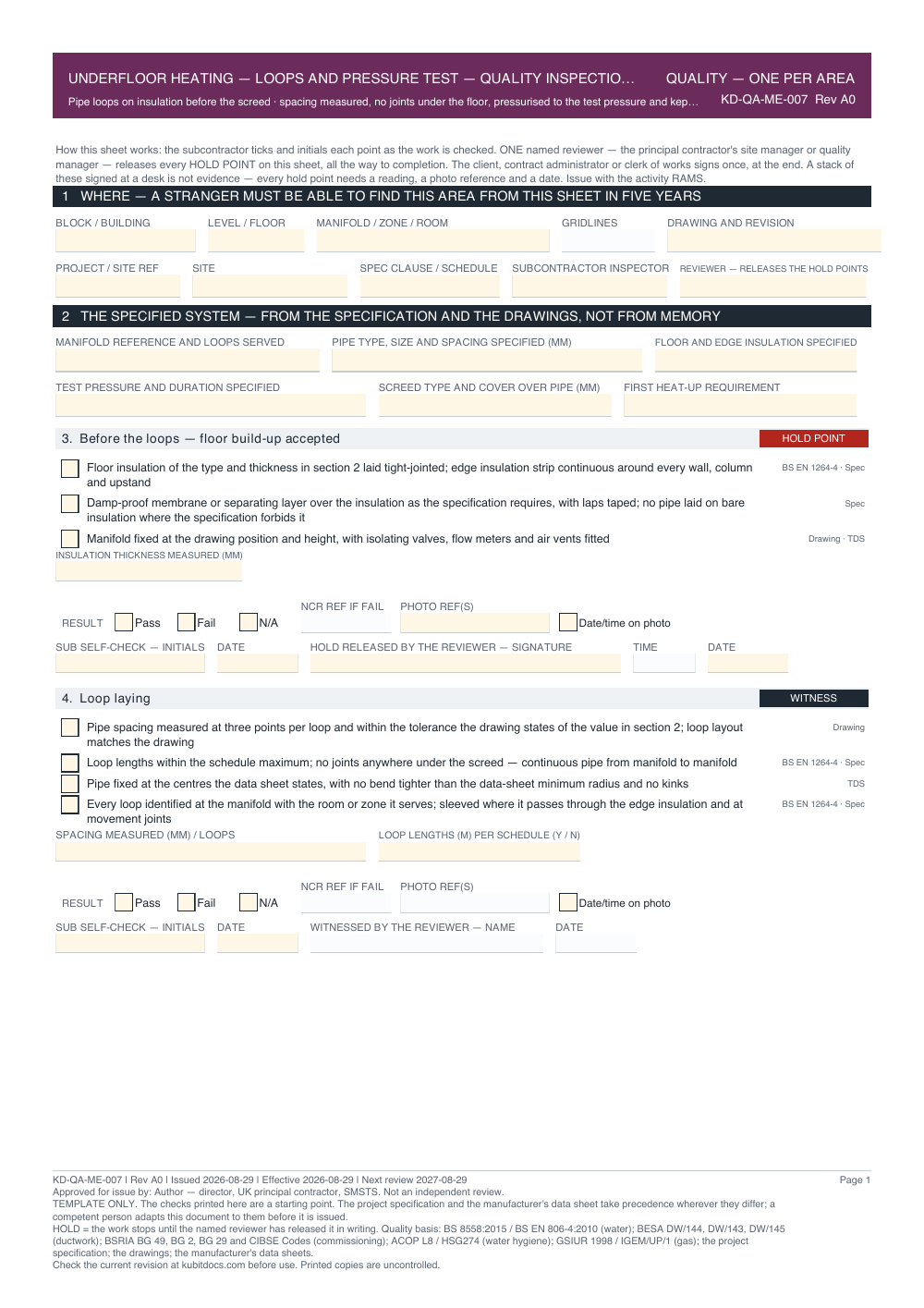

Page 1 of 4 — click to enlarge
Read all 4 pages first — watermarked sample, no email Before you submit: the checklist
Statutory basis, cited on the form
- Water Regs 1999 — the Water Supply (Water Fittings) Regulations 1999
- BESA DW/144 (2013) — specification for sheet metal ductwork
- BESA DW/143 (2013) — practical guide to ductwork leakage testing
- BESA DW/145 (2010) — installation of fire and smoke dampers
- BESA TR/19 — internal cleanliness of ventilation systems
- BSRIA BG 49/2015 — Commissioning Air Systems
- BSRIA BG 2/2010 — Commissioning Water Systems
- BSRIA BG 29/2021 — Pre-Commission Cleaning of Pipework Systems
- CIBSE Commissioning Codes (A air distribution, B boilers, M commissioning management, R refrigerating systems, W water distribution)
- GSIUR 1998 — Gas Safety (Installation and Use) Regulations 1998
- IGEM/UP/1 Edition 3 — strength testing, tightness testing and direct purging of industrial and commercial gas installations
- IGEM/UP/2 — installation pipework on industrial and commercial premises
- PSSR 2000 — Pressure Systems Safety Regulations 2000
- F-Gas — Fluorinated Greenhouse Gases Regulations 2015
- Building Regulations 2010 (commissioning of fixed building services) and Approved Document L (2021 edition), Approved Document F (2021 edition), Approved Document H (2015 edition)
Guidance and standards relied on
These are not law. HSE guidance carries no statutory force in itself, British Standards and NASC technical guidance are industry documents, and the Joint Code of Practice is an insurers' code. They are what the document is built to — and where a court would look for the standard of the reasonable contractor.
- BS 1710:2014 (identification of pipelines and services)
- BS 5970:2012 (thermal insulation of pipework and ductwork — code of practice)
- BS 8558:2015 (services supplying water for domestic use — design, installation, testing and maintenance)
- BS EN 806-4:2010 (installations inside buildings conveying water for human consumption — installation)
- BS EN 1264-4:2021 (water based surface embedded heating and cooling systems — installation)
- BS EN 12599:2012 (ventilation for buildings — test procedures and measurement methods for handing over)
- ACOP L8 (4th edition, 2013) — Legionnaires' disease. The control of legionella bacteria in water systems
- HSG274 Part 2 (2014) — the control of legionella bacteria in hot and cold water systems
- HTM 04-01 (2016) — safe water in healthcare premises
What it is not
It is not a completed document and it is not health and safety advice. You must adapt it to your site and have a competent person complete and sign it off. See why we don't say "compliant".
Format
AcroForm fillable PDF. Every field has a tooltip. Tab order follows the reading order. Works on desktop and mobile, in Adobe and non-Adobe readers.
This revision was prepared against legislation current at 10 August 2026. Revision A0. Check kubitdocs.com/revisions for the current revision before use.
