Pile Caps and Ground Beams — Quality Inspection Checklist

Name: Pile Caps and Ground Beams — Quality Inspection Checklist
Brand: KubitDocs
SKU: KD-QA-PS-004
Price: 7 GBP
Availability: InStock

Pile heads, formwork, reinforcement and cast-ins seen BEFORE the pour · one sheet per cap or beam group

5 pages · 218 fillable fields · works in Adobe Reader, Preview, Chrome, or on a phone — or complete it online in your browser and download the finished document.

£7+ VAT

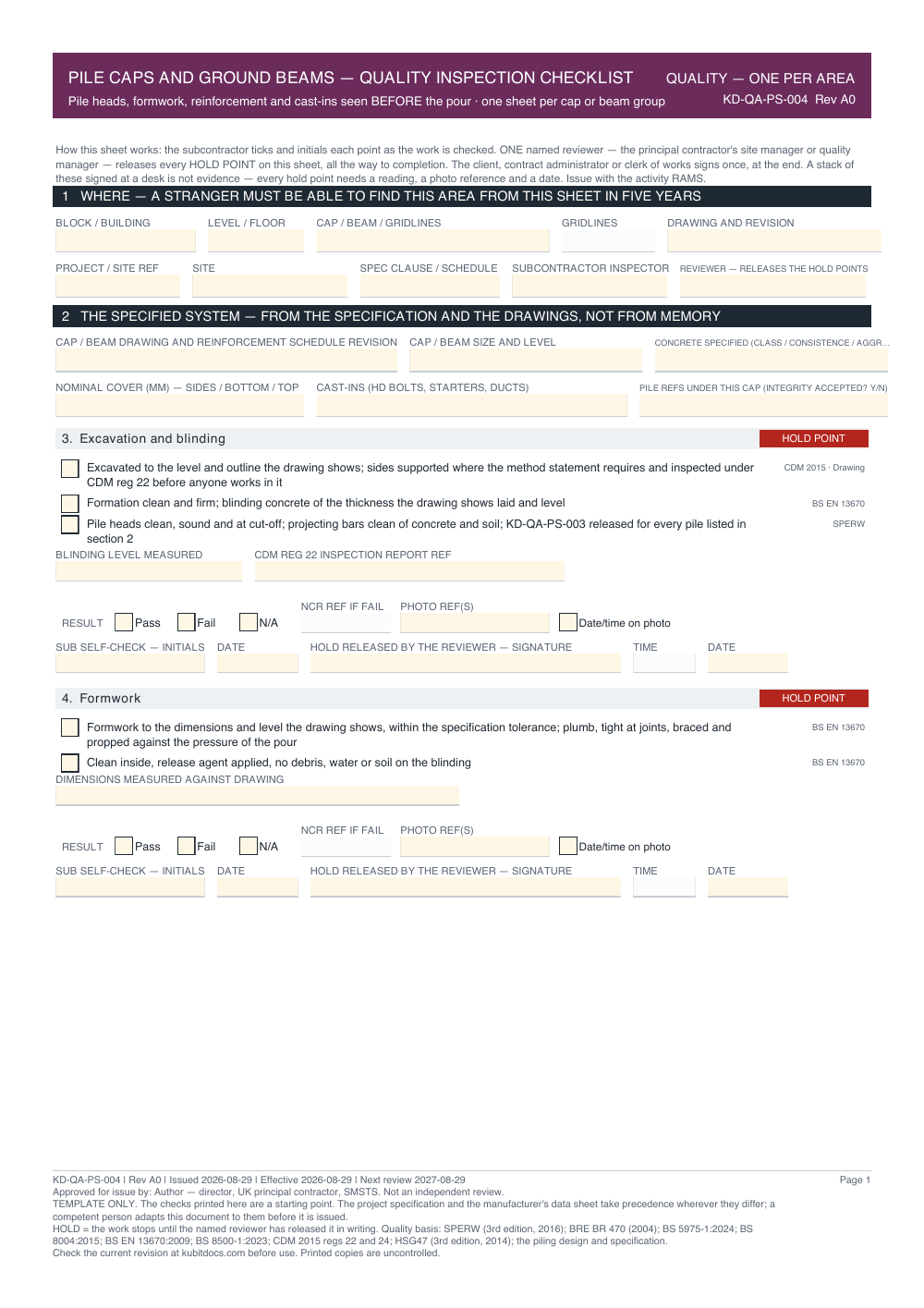

Page 1 of 5 — click to enlarge

Read all 5 pages first — watermarked sample, no email Before you submit: the checklist

Single document

£7ex VAT — VAT at the applicable rate is added at checkout

I ask for immediate download, and I understand that once it begins I lose my 14-day right to cancel. My statutory rights if a file is faulty or not as described are unaffected.

Pay once — no subscription, nothing renews
Yours to keep, with every future revision free
Re-download any time from your downloads
No sales calls — a person answers email within one working day

This document is approved for issue by its author — a director of a UK principal contractor, forty years in the industry, SMSTS. It has not been independently reviewed, and the document says so. Every future revision of it is free, and your order email includes a link to complete it online — fill it in your browser, download the finished document. Why we don’t say “compliant”.

Everything for piling & substructure16 documents on one page — £186 bought one at a time £79 All 265 quality inspection checklists£1.13 a document, every future revision free £299

Statutory basis, cited on the form

SPERW (3rd edition, 2016) (ICE Specification for Piling and Embedded Retaining Walls)
BRE BR 470 (2004) (working platforms for tracked plant)
the delivery ticket)
making and curing cubes)
CDM 2015 regs 22(4), 24 and 25(4)
NHBC Standards 2024 Chapters 4 to 7 (4.4 raft, pile, pier and beam foundations)

Guidance and standards relied on

These are not law. HSE guidance carries no statutory force in itself, British Standards and NASC technical guidance are industry documents, and the Joint Code of Practice is an insurers' code. They are what the document is built to — and where a court would look for the standard of the reasonable contractor.

BS 5975-1:2024 (temporary works — the working platform and underpinning support)
BS 8004:2015 (foundations — underpinning)
BS EN 13670:2009 (execution of concrete structures)
BS 8500-1:2023 and BS 8500-2:2023 (specifying concrete
BS EN 12350-2:2019 and BS EN 12390-2:2019 (slump test
HSG47 (3rd edition, 2014)

What it is not

It is not a completed document and it is not health and safety advice. You must adapt it to your site and have a competent person complete and sign it off. See why we don't say "compliant".

Format

AcroForm fillable PDF. Every field has a tooltip. Tab order follows the reading order. Works on desktop and mobile, in Adobe and non-Adobe readers.

This revision was prepared against legislation current at 10 August 2026. Revision A0. Check kubitdocs.com/revisions for the current revision before use.
